Manual Sliding Airtight Door

Manual Sliding Airtight Door
Manual sliding airtight doors are designed specifically for clean and enclosed environments. They are available in single-opening and double-opening models. Special airtight sealing strips are embedded around the door's perimeter, ensuring a tight seal with the frame when closed, effectively isolating airflow, dust, and microorganisms while meeting the pressure differential requirements of clean areas. Utilizing silent slide rails and high-strength pulleys, manual pushing and pulling is smooth and effortless. An optional self-closing device enables automatic reset and closure. Surface options include stainless steel, color steel plate, or medical antibacterial board, which are easy to clean and corrosion-resistant.

Shandong Renshi Jinxin Medical Equipment Co., Ltd. is a one-stop production base for radiation protection and purification, and an integrated solution provider! We have provided construction services to over 10,000 large and medium-sized hospitals, undertaking radiation protection projects with delivery and on-site installation services! Our products are exported globally and meet international quality standards such as FDA and ISO! They are widely used in medical imaging in Europe and America, and we have expanded into international markets including India, Brazil, Russia, Vietnam, the United States, Europe, and Southeast Asia.

Contact Us
Product Parameters

手动单开平移气密门2

手动双开平移气密门1

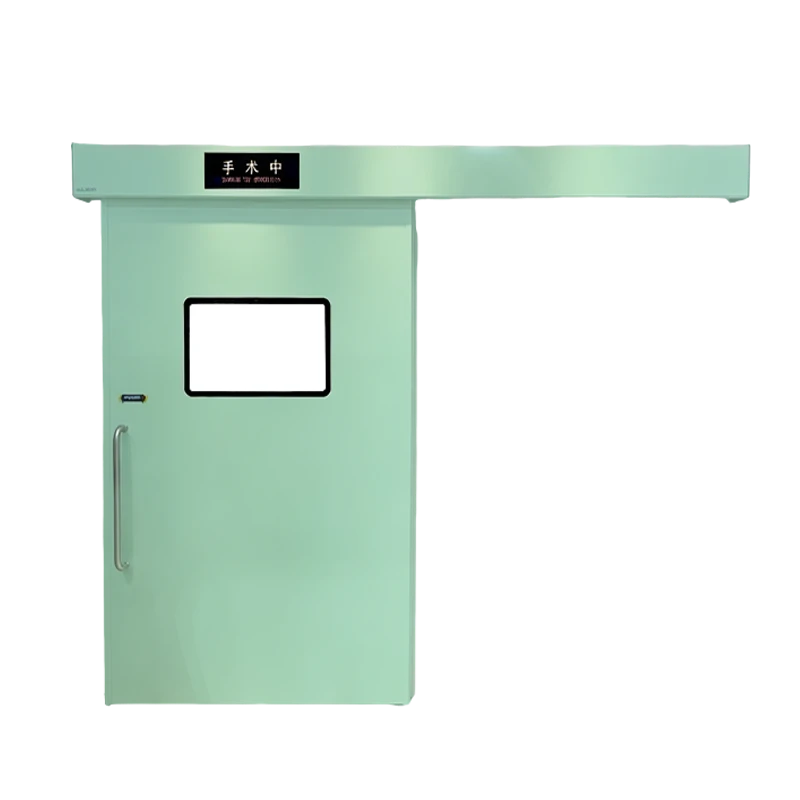

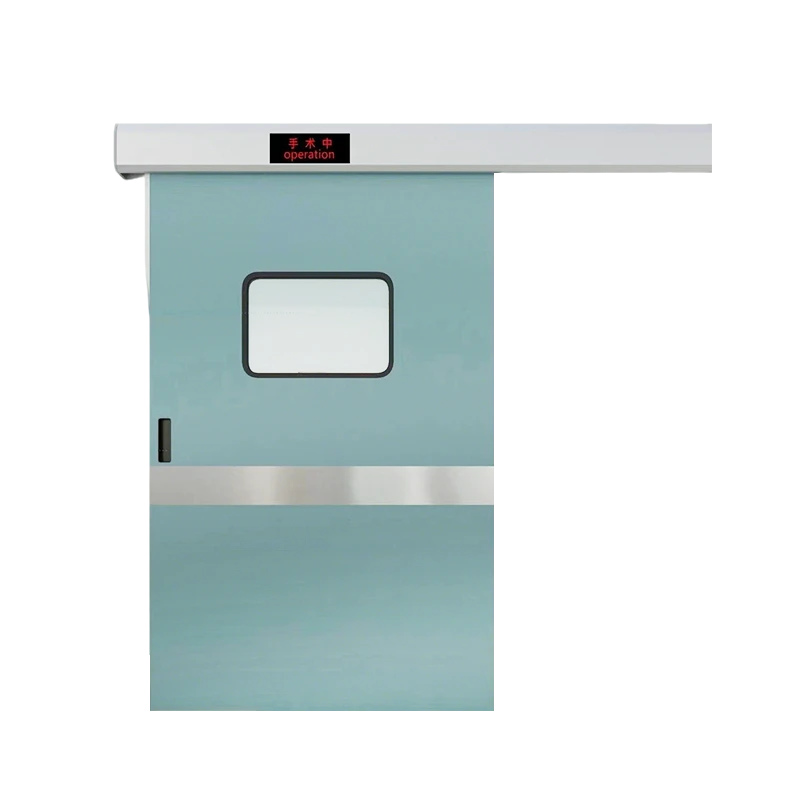

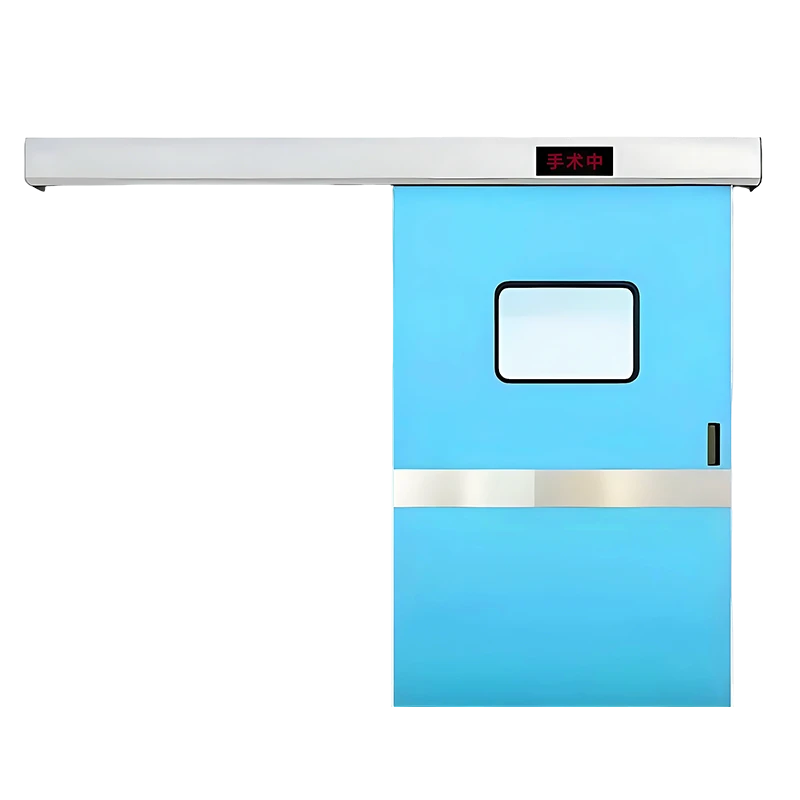

Manual Single-Opening Sliding Airtight Door

The single-opening model is suitable for standard doorways, with the door sliding in one direction.

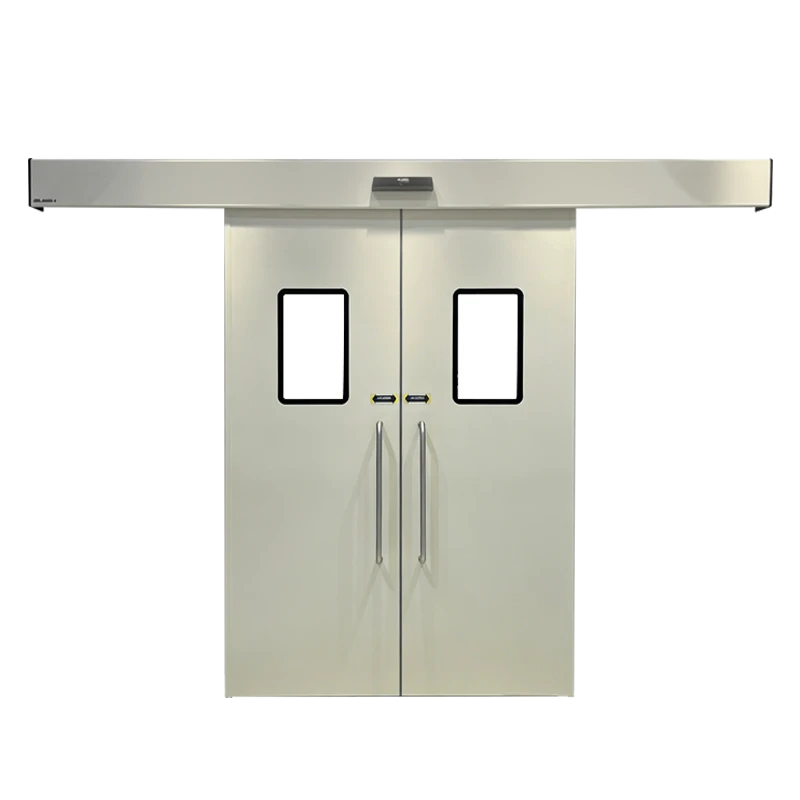

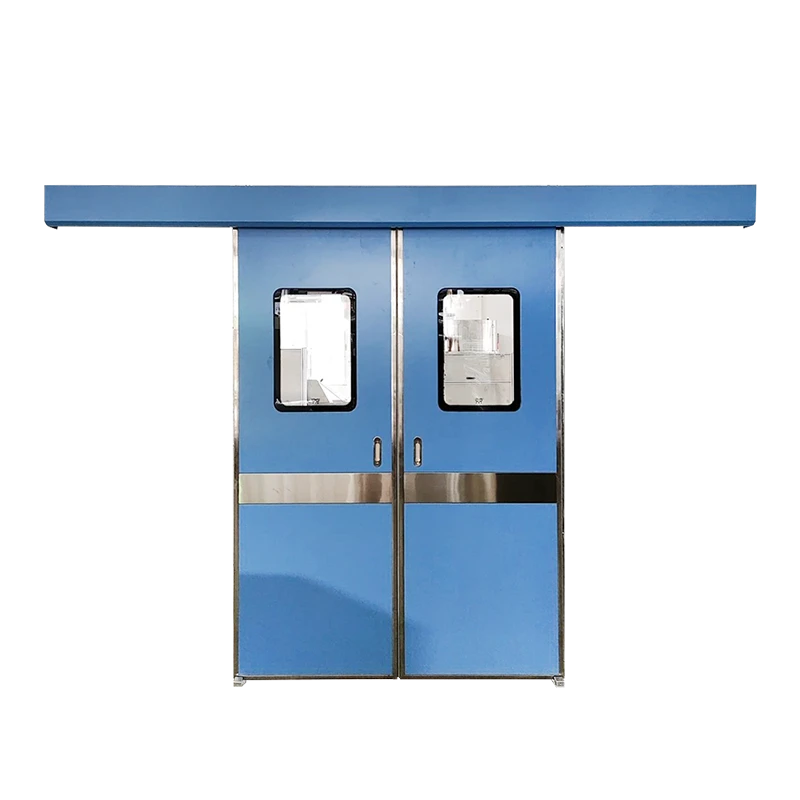

Manual Double-Opening Sliding Airtight Door

The double-opening model features a bidirectional opening structure, suitable for larger passageways, and offers flexible opening and closing.


ItemsDescription
Product NameOperating room airtight door、Manual Sliding Airtight Door
Door Type1M -2M
ConstructionA wide range of sliding hermetic Doors. These are basically meant for air ingression in the room. The door has mechanically interlocked vertical edges that add strength and rigidity, which makes them appropriate for light and heavy use.
SensorManual door opening
WindowStandard 400 x 600MM clear acrylic, black rubber surrounding. Various Window Configurations
Door Fan Thickness40MM
CoreAluminum  Honeycomb
Face Sheet MaterialStainless Steel 304#/ 201#/ Galvanized steel
FinishPolished/ Spray painting
SealFull perimeter gasketing
ApplicationsHospital, Food, Cold storage, Pet, Compliant Cleanroom, etc.
Warranty1Years


Product Display

Operating-room-airtight-door_02


Factory Inventory Display

Operating-room-airtight-door_04


Product Application
application
Factory Showcase
Factory_Showcase
Provide turnkey projects

We are a professional factory providing turnkey solutions for operating room, laboratory, and radiation protection projects.
